Husson H-Stop®
Rapid deployment HVM barrier

Husson H-Stop® hostile vehicle mitigation barriers offer:

Quick and easy installation
A physical and visual hostile vehicle deterrent
Immediate authorised vehicle access
1200mm pedestrian permeability between each unit
Suitability for uneven road surfaces
Ease of reconfiguration with just one operative need to wheel each HVM unit into position
Advertising, branding and wayfinding opportunities
Compact storage
A single unit can stop a 1,500kg vehicle at 48kph
3 unlinked units can stop a 7,500kg vehicle at 48kph

Technical specifications

Height above ground: 1363mm
Width of unit: 1300mm
Depth of unit: 1275mm
Width of tested array: 1300mm (1 unit) and 6300mm (x3 units) at 1200mm intervals)
Weight: 144kg
Foundation depth: Surface mounted
Security rating:
IWA 14-1 V/1500(M1)/48/90/13
PAS68 v/7500(N2)/48/90/24.3

Download the H-Stop® Data Sheet

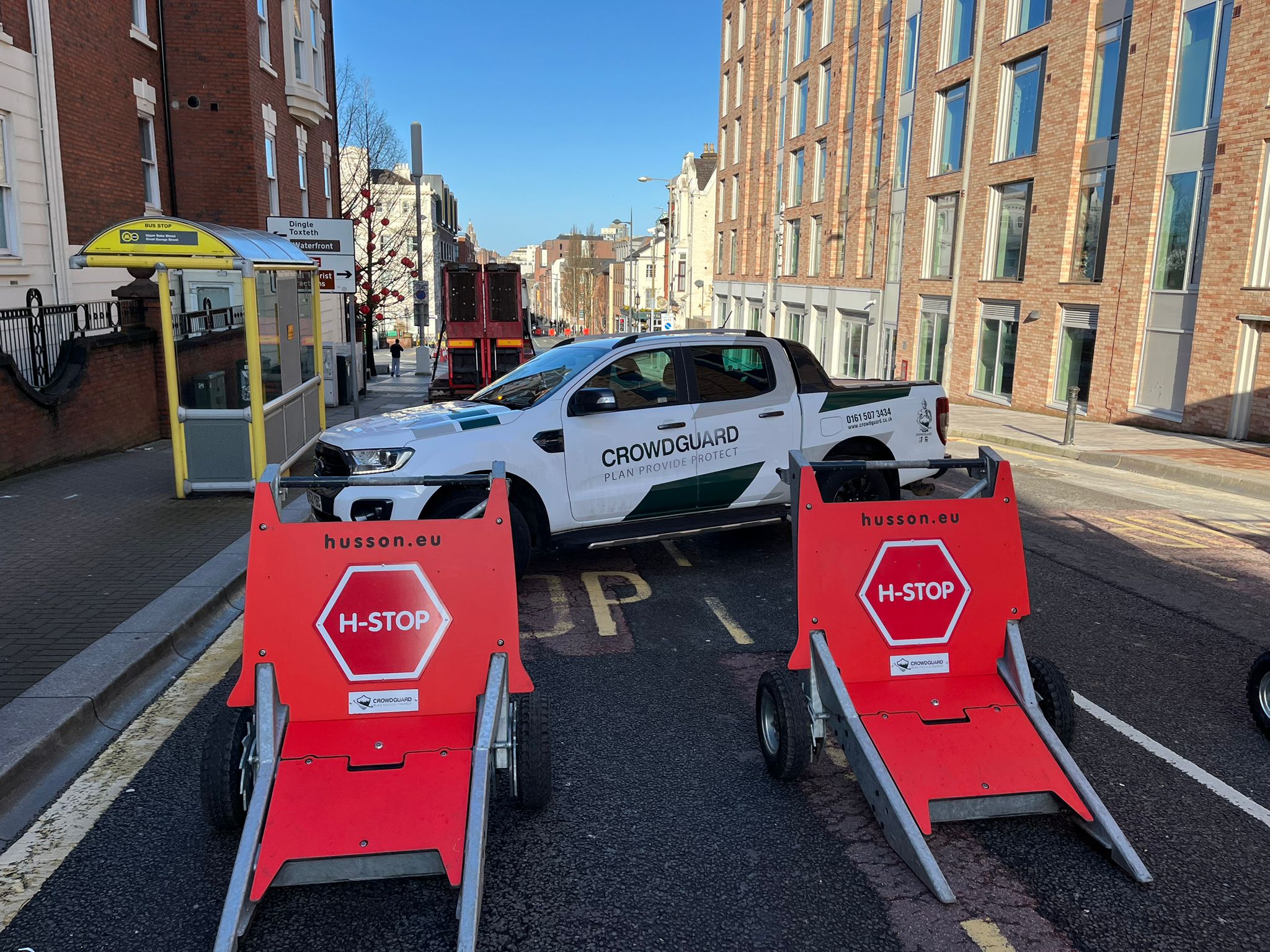

A surface-mounted HVM system that requires no fixtures or fittings, the H-Stop® is an ideal HVM solution for protecting road closures or implementing rapid, pedestrian permeable HVM protection. It provides a versatile HVM solution with ease of reconfiguration and convenient compact storage.

How does the H-Stop® HVM system work?

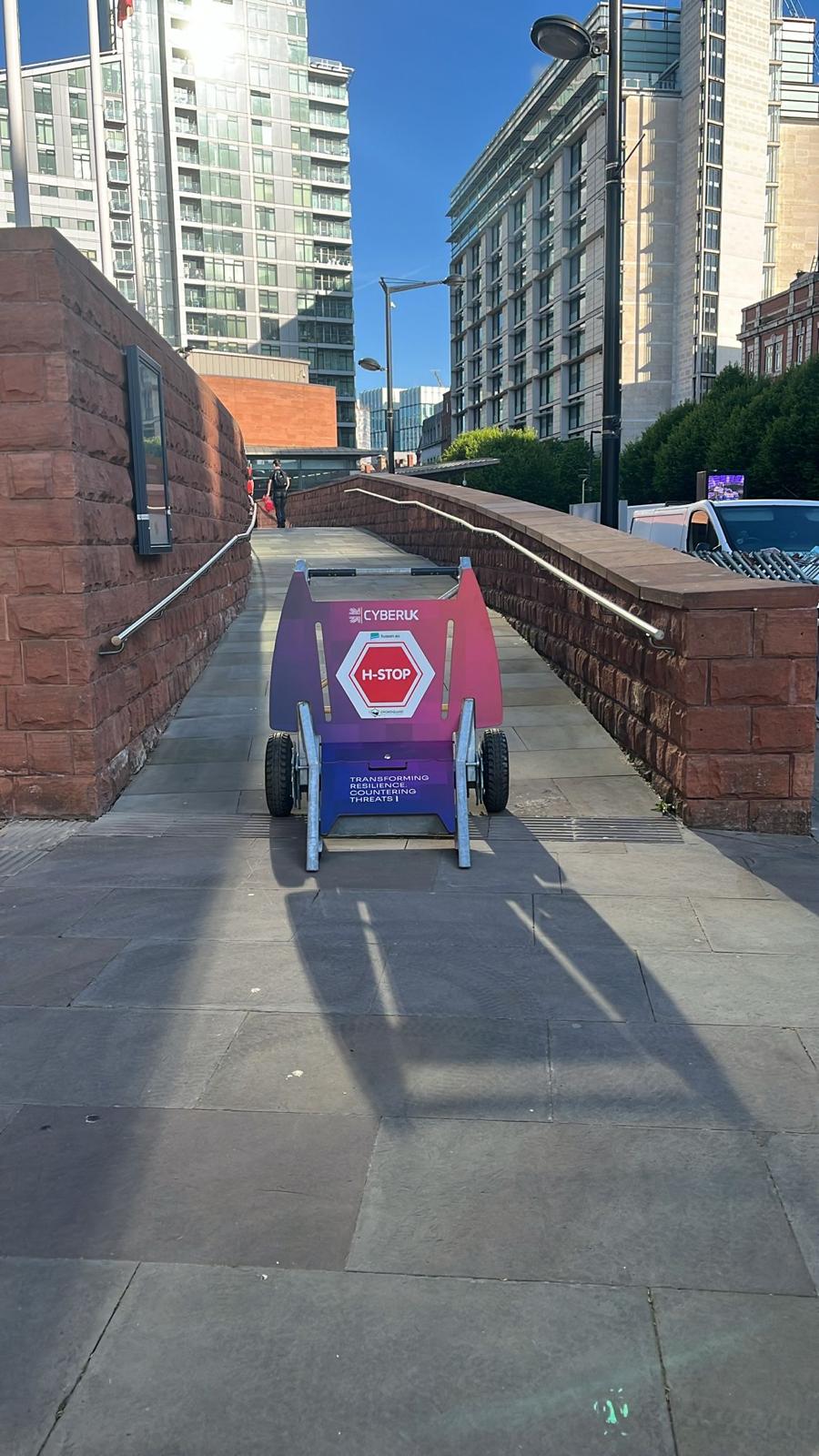

The HVM barrier can be wheeled into position virtually anywhere by a single operative. It works by tipping a vehicle on contact, changing its trajectory from horizontal to vertical.

The robust wheels have pneumatic tyres, which means the H-Stop® HVM system can be wheeled over uneven surfaces and once in position, the wheels can be locked to secure the HVM barrier in place, and unlocked to allow instant authorised vehicle access.

H-Stop® HVM system performance

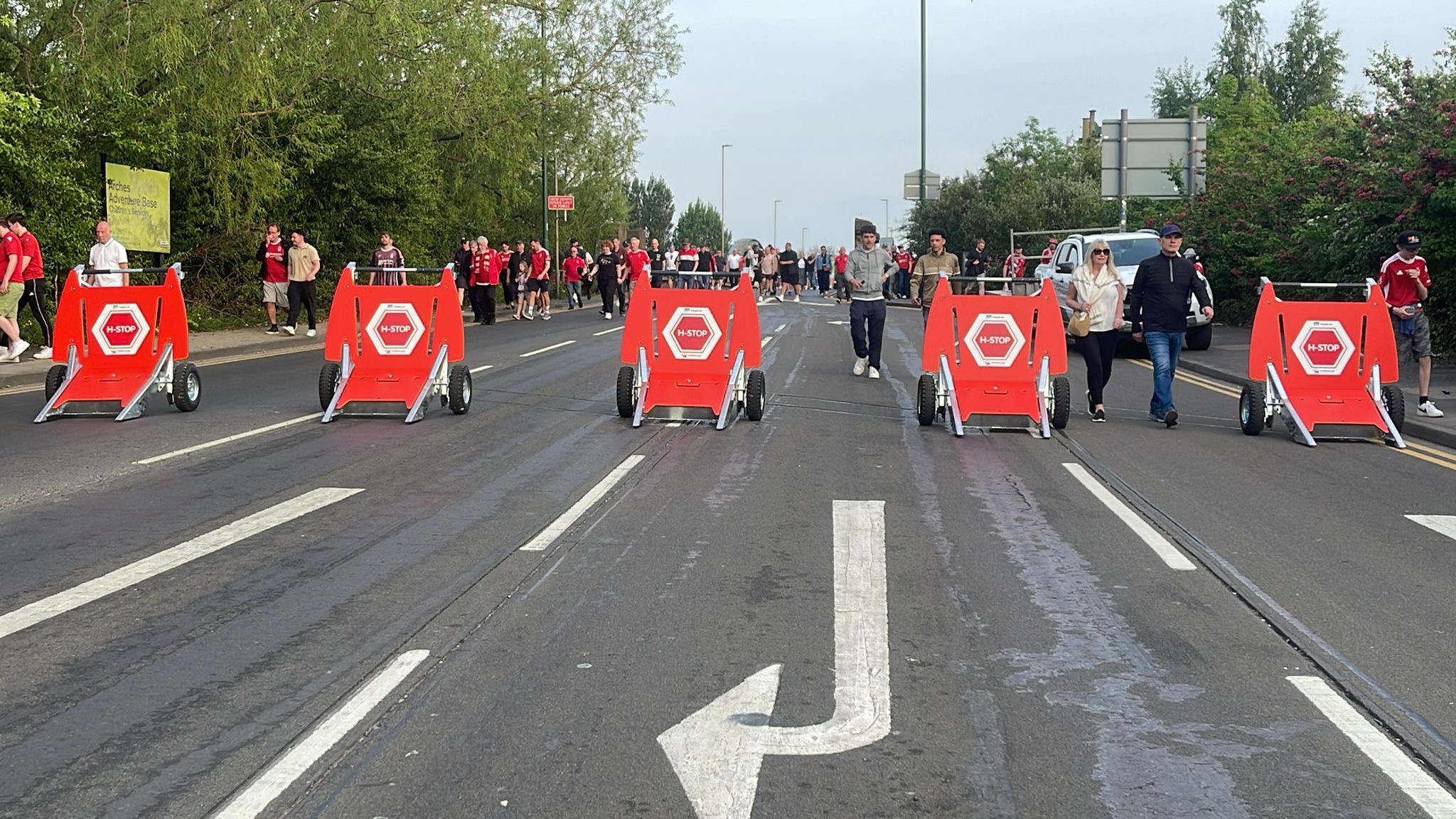

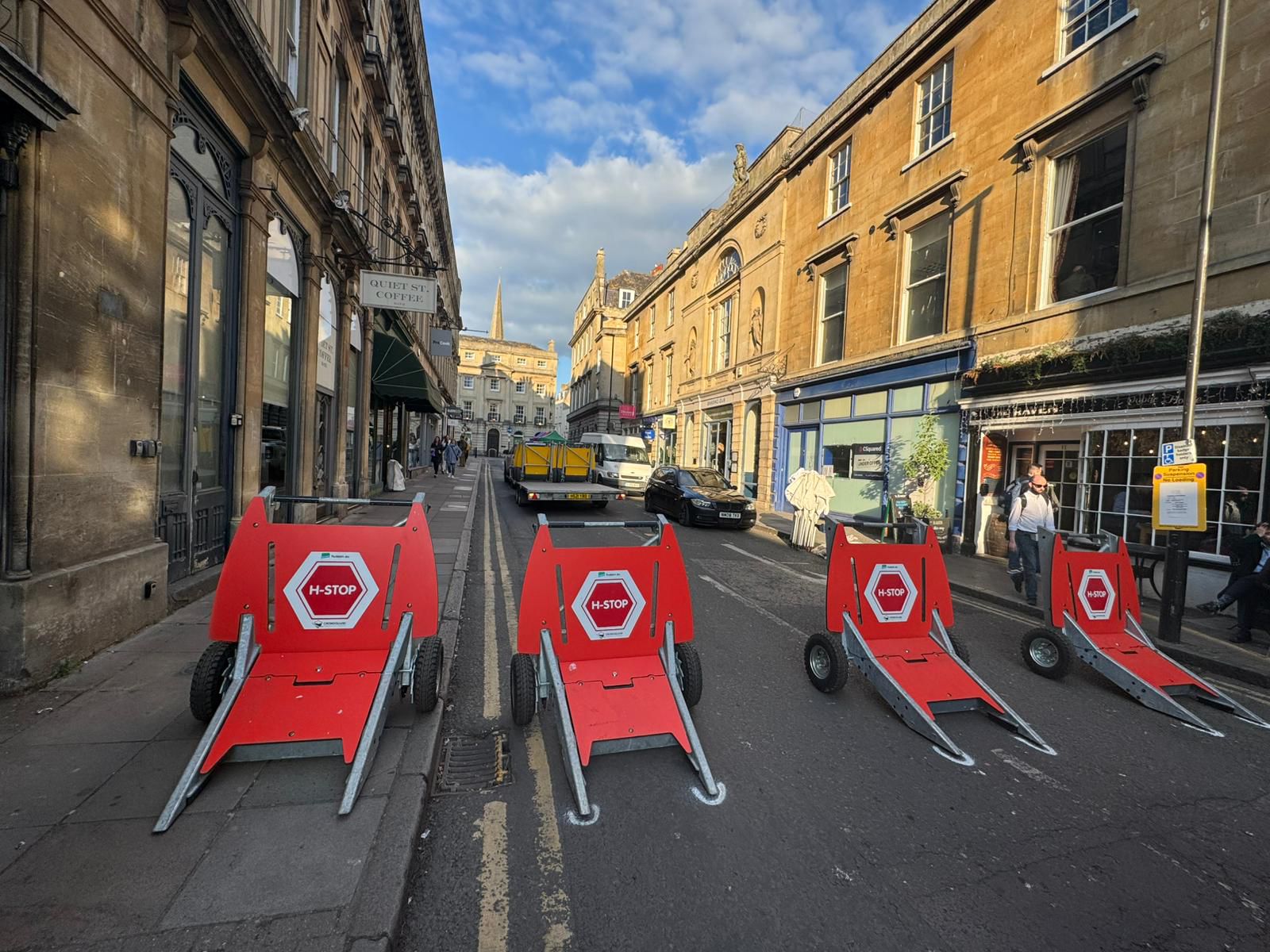

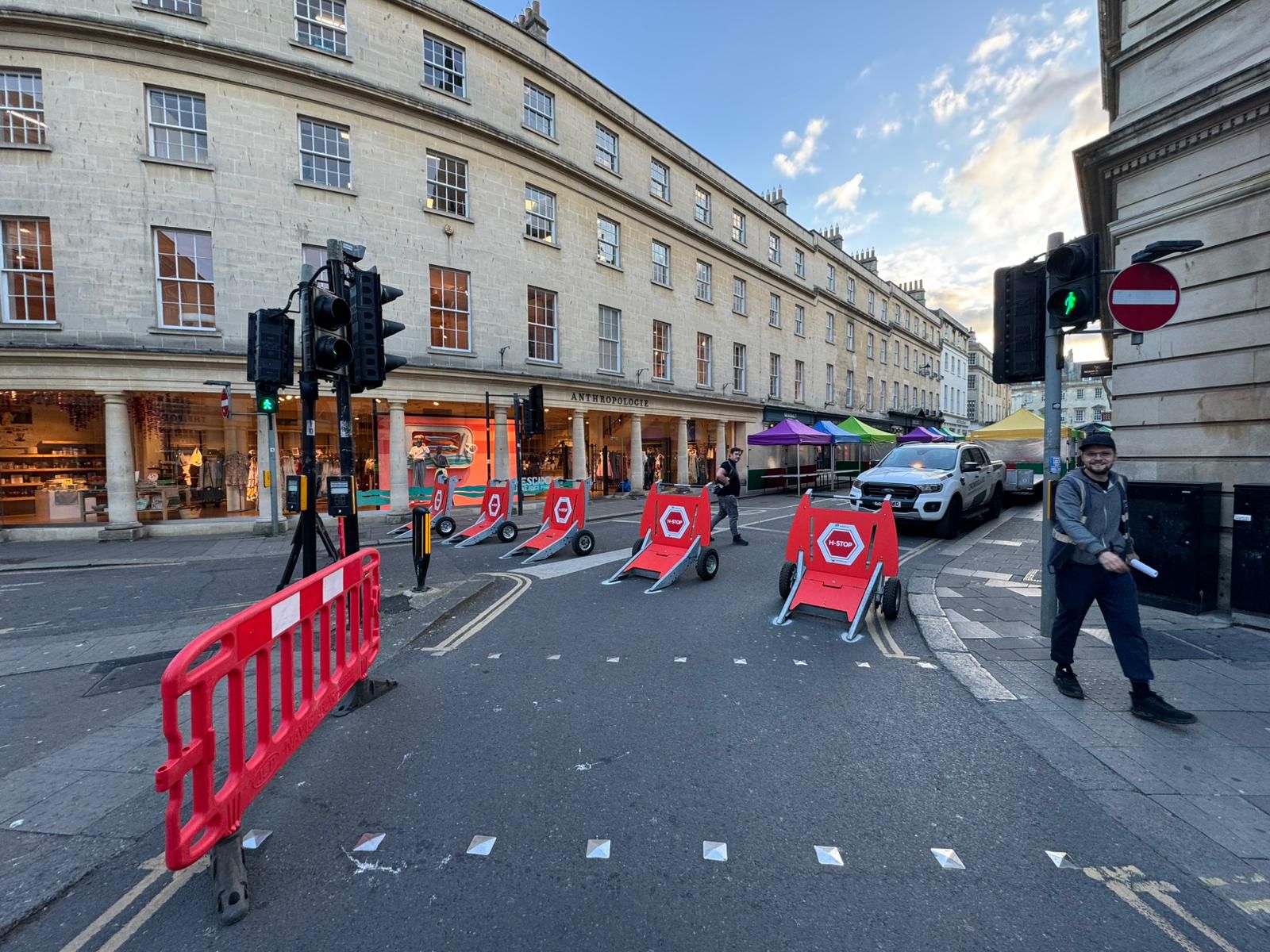

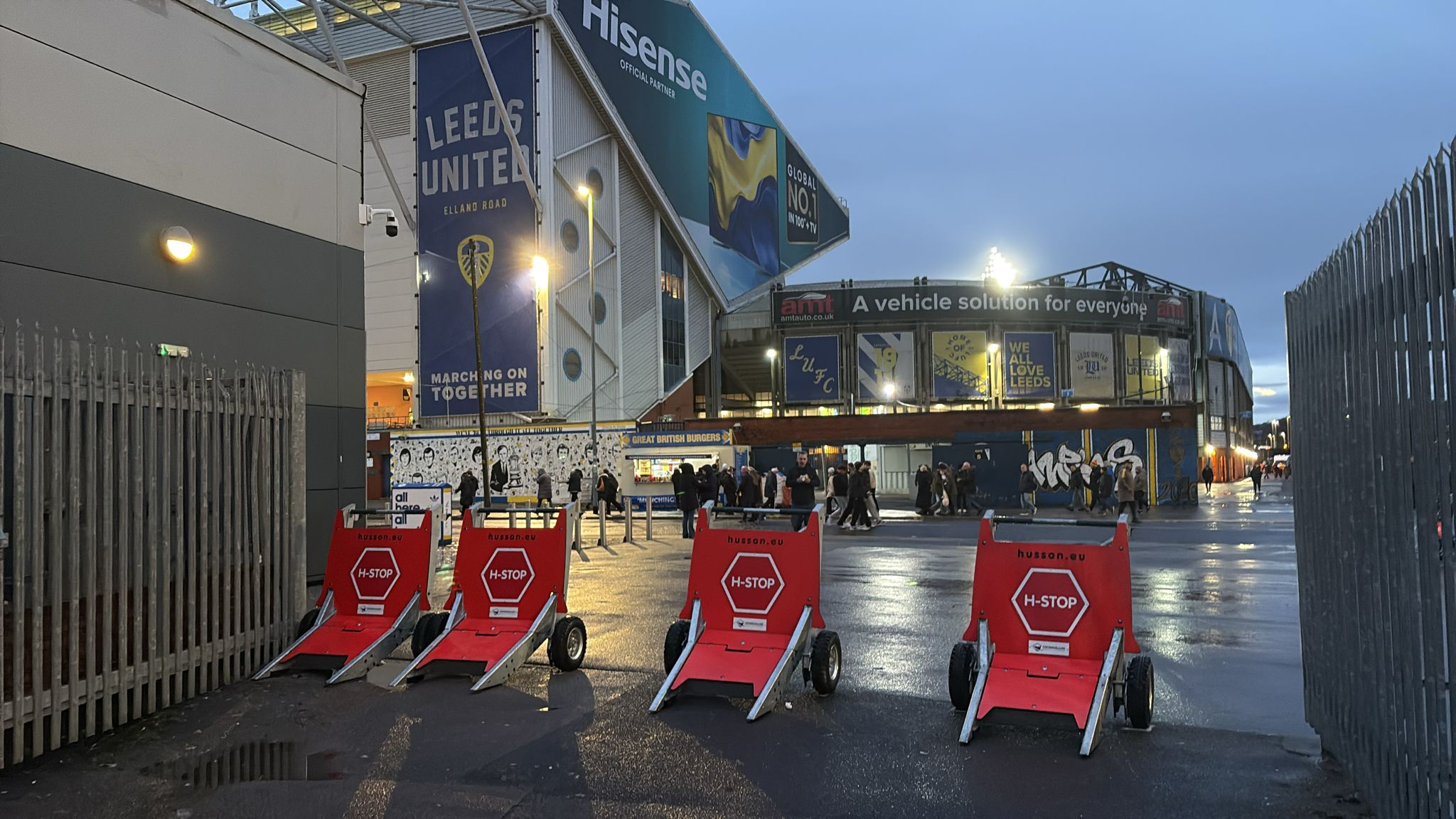

A single H-Stop® HVM unit is certified to protect against a 1,500kg vehicle at 48kph, whilst a 7,500kg vehicle can be stopped at 48kph by three unconnected units, to enable pedestrian permeability, with the central unit stepped back from the front two.

A practical and convenient HVM system

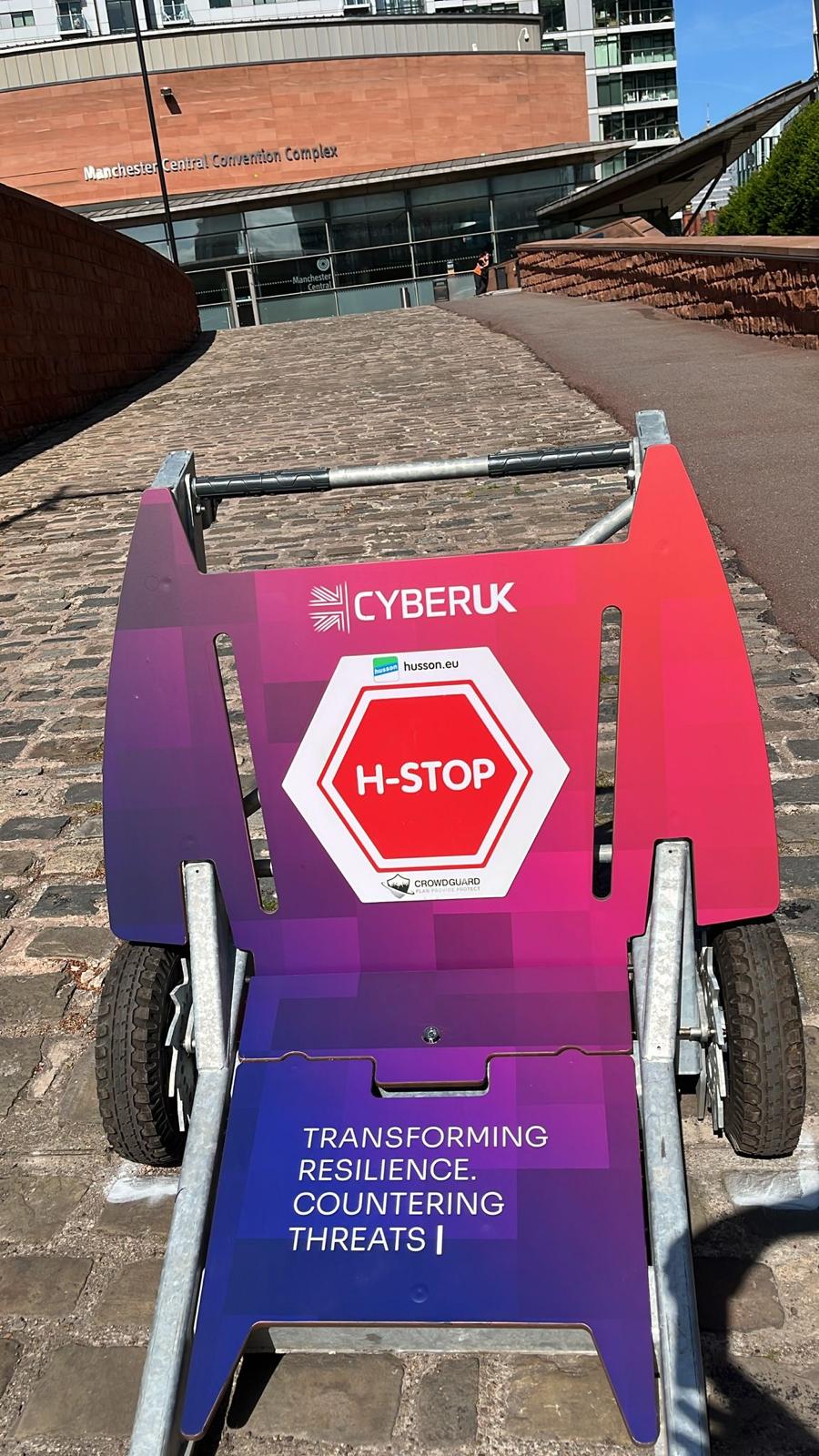

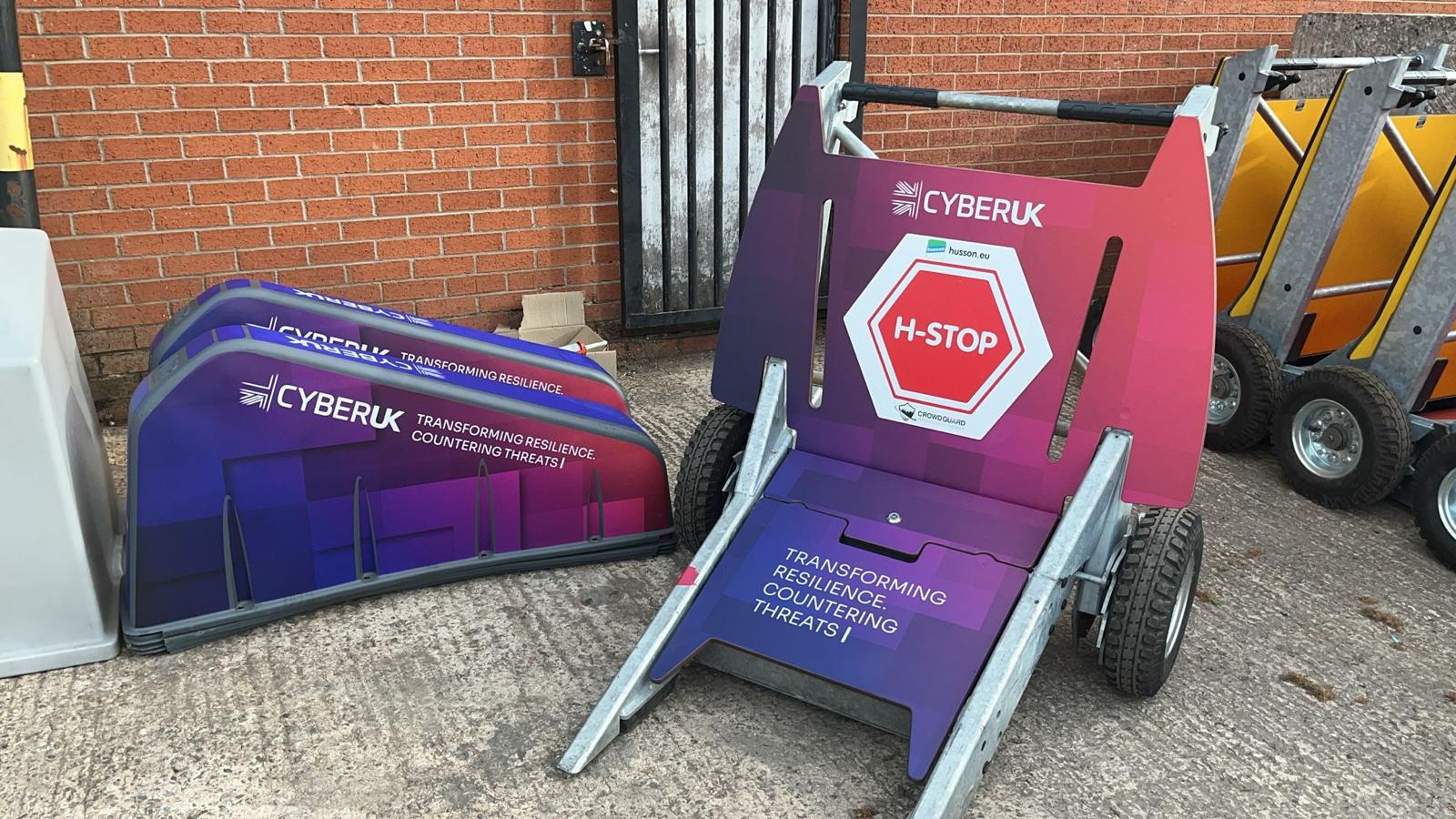

Supplied in bright red as standard to provide a visual deterrent, the H-Stop® HVM system can be provided in a range of colours and customised with branding, advertisements or wayfinding to complement your event.

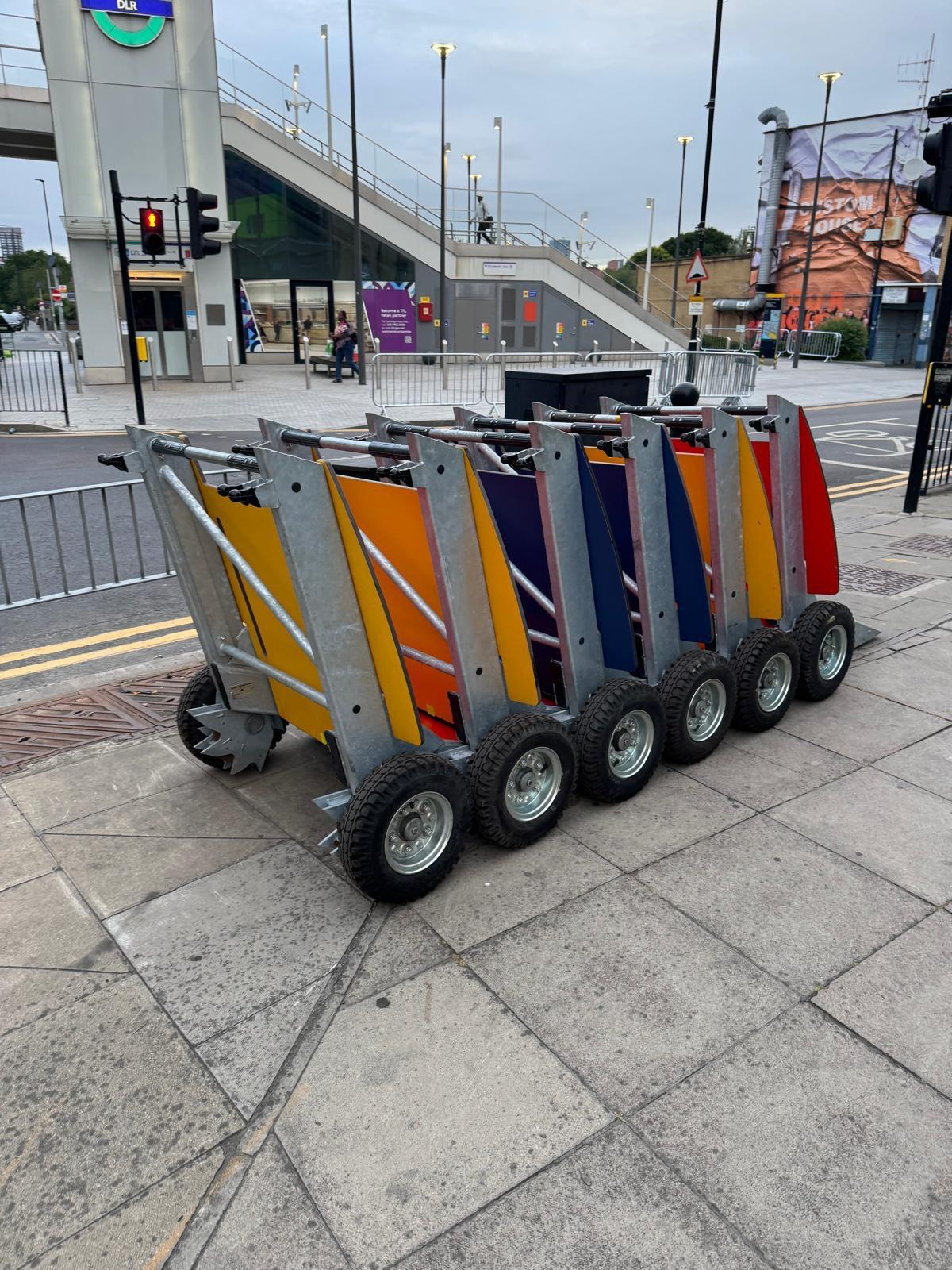

When not in use, H-Stop® HVM units push into each other like shopping trolleys, enabling compact and convenient storage.

For more information on the Husson H-Stop® and how our hostile vehicle mitigation solutions can help to keep people safe at your event, get in touch.
